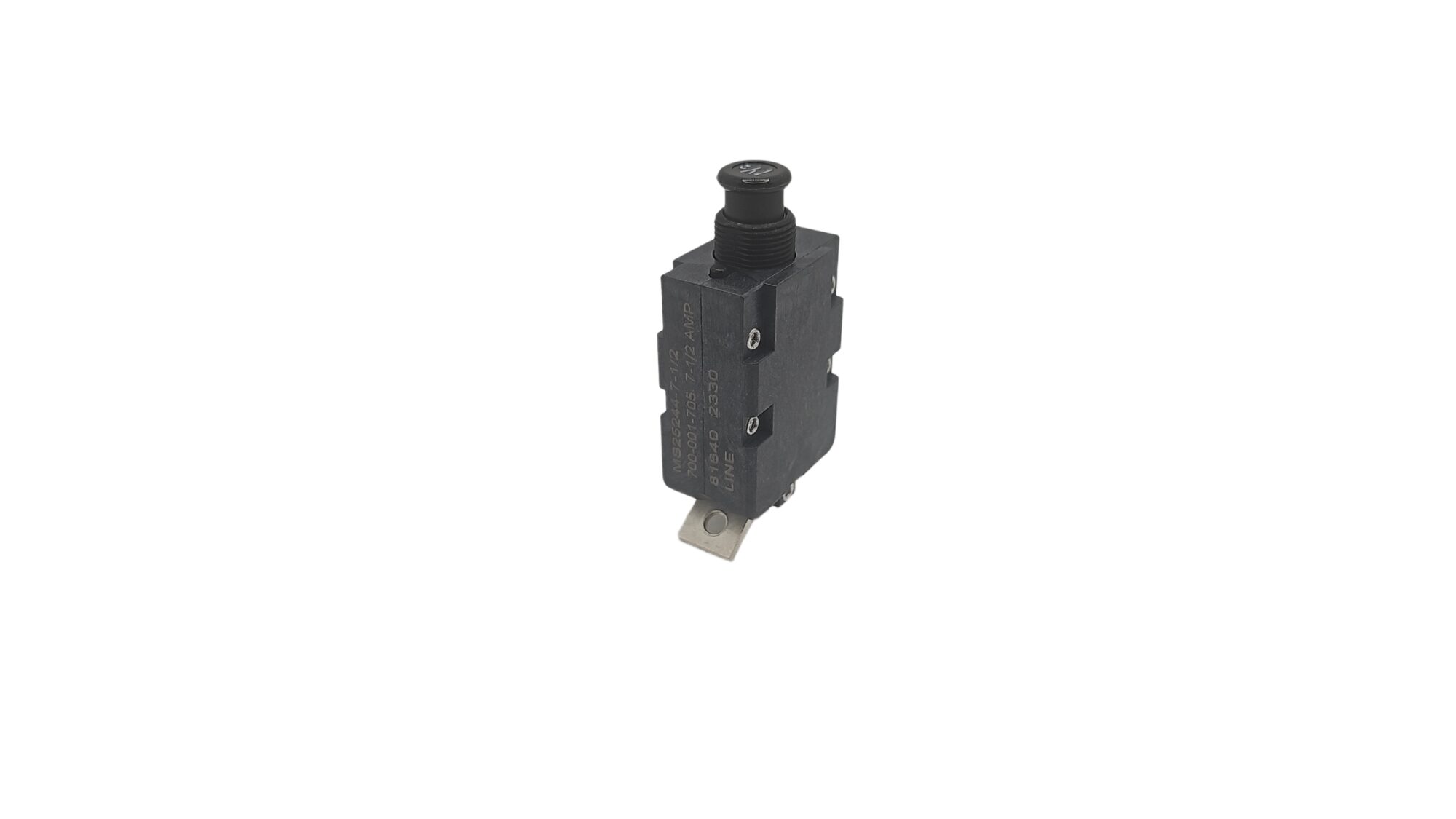

700-001-705 MS25244-7.5 SAFRAN POWER USA 7.5 AMP CIRCUIT BREAKER

700-001-705

Availability: 17 in Stock

Backorder: 0

MS25244-7-1/2

Categories: Circuit Breakers

Attachments: 700-001-705

Qualified
- To MS25244, MS25244-P and MS25244-PT of MIL-C-5809 (MS25244pt is a substitute for MS25017)
Lightweight
- Circuit breaker weighs only 43 grams
High interrupting capacity
- Interrupts a 6,000A circuit at 30V, DC; 3,500A circuit at 120V, 400 Hz. AC.
Performance rated circuit breaker
- Exceeds military specification requirements for durability, vibration, mechanical shock, and acceleration. The 700 is a miniature push-pull breaker offering fast trip and high interrupting capacity. Its trip-free design prevents the breaker from being held closed manually on overloads.
- A feature of the breaker is separate overload and mechanical latches. Separated in this way, the mechanical latch assures maximum endurance for the thousands of cycles of manual on-off operation, while the thermal latch combines both precise operation and durability.
