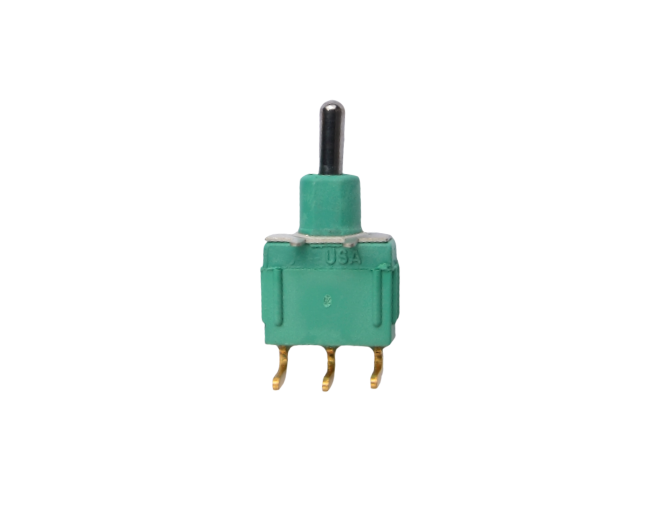

WT223S1D1V30G ELECTROSWITCH SEALED TOGGLE SWITCH
WT223S1D1V30G
Availability: 0
Backorder: 0
Categories: Switches, Toggle Switches
Attachments: WT Series Toggle Catalog
Mechanical Specifications
Toggle Size – starting at .532 x .281 x .526
Life Cycles Under Load – 60000
Mounting Options – Panel or PC
Terminal Options – Quick Connect, Right Angle PC, Solder Lug, Vertical PC
Operating Temps (C) -30° to +65°
Contact Material – Silver or Gold Plated Brass or Gold Plated Silver
Actuator – Metal
Sealing – IP67
Max Poles – 2
Functions – SPDT OR DPDT: ON-OFF-ON ON-ON ON-(ON) (ON)-OFF-(ON) ON-OFF-(ON) ON-ON-ON ON-ON-(ON) (ON)-ON-(ON) ( ) = Momentary
Electrical Specifications
Toggle Current and Voltage – 6A @ 125 VAC, 3A @ 250 VAC, 6A @ 28 VDC
Dielectric strength VAC – 1000
Optional features
Black Finish Bat and Bushing
Many Different Bat and Terminal Combinations
Support Brackets
| COO | MX |
|---|---|
| ECCN | EAR99 |
| HTS | 8536.50.9025 |
| Manufacturer | Electroswitch Electronic Products |
| Current Back Order | 0 |
