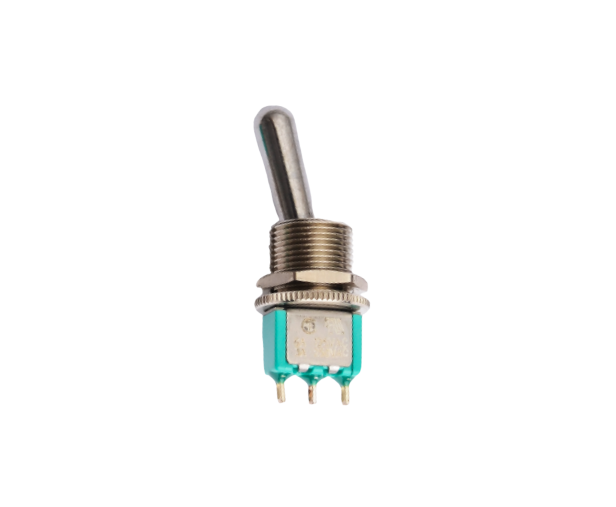

A123S1YZQ ELECTROSWITCH MINIATURE TOGGLE SWITCH

A123S1YZQ

Availability: 0

Backorder: 0

Categories: Switches, Toggle Switches

Attachments: A Series Catalog

Description
Additional information

A Series Toggle Switches

Mechanical Specifications

Toggle Size – starting at .500 x .260 x .505

Life Cycles Under Load – 60000

Mounting Options – Panel or PC

Terminal Options

Quick Connect

Right Angle PC

Solder Lug

Vertical PC

Operating Temps (C) -30° to +90°

Contact Material – Silver or Gold Plated Brass or Gold Plated Silver

Actuator – Metal

Sealing – Splash Proof Lever, Bushing and Panel Seals Available

Max Poles – 4

Functions – SPDT, DPDT, 3PDT, or 4PDT: ON-OFF-ON ON-ON ON-(ON) (ON)-OFF-(ON) ON-OFF-(ON) ON-ON-ON ON-ON-(ON) CENTER ON-(ON) OFF-ON (ON)-ON-(ON) CENTER ON-ON ( ) = Momentary

Electrical Specifications

Toggle Current and Voltage – 6A @ 125 VAC, 3A @ 250 VAC, 6A @ 28 VDC

Dielectric strength VAC – 1000

Optional features

Black Finish Bat and Bushing

Lever Locking Bat

Many Different Bat and Terminal Combinations

RoHS compliant

Support Brackets

Approvals UL Recognized & CSA Certified

COO	MX
ECCN	EAR99
HTS	8536.50.9025
Manufacturer	Electroswitch Electronic Products
Current Back Order	0
