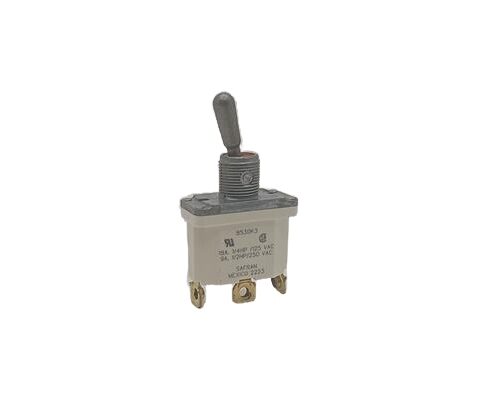

8530K3 SAFRAN POWER USA TOGGLE SWITCH
8530K3
Availability: 0
Backorder: 0
Categories: Switches, Toggle Switches
- Environmentally sealed
- 1, 2 and 4 pole circuitry
- 2 & 3 position with maintained and momentary action
- Three types of termination offered as standard
- Watertight seal per mil-std-108e and designed to meet ip68
- UL recognized and CSA certified
- Three standard types of terminals:
- Screw 6-32 unc-2a
- Solder lug .125 [3,17] dia. Hole
- Spade .250 [6,35] x .032 [0,81] thick
- Life: 50,000 operations at rated load & 100,000 operations mechanical life
- Temperature range: -50°F to +150°F (-46°C to + 66°C)
| COO | MX |
|---|---|
| ECCN | EAR99 |
| HTS | 8536509065 |
| Manufacturer | Safran Power USA, LLC. |
| Current Back Order | 0 |
